Jawtracking

CADIAX® 4

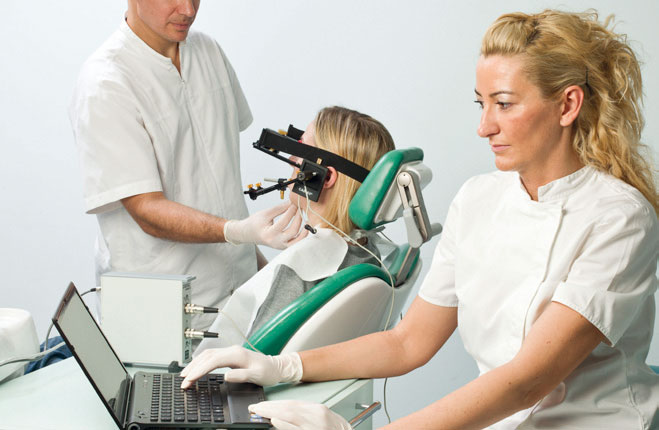

Is the high-end device of the CADIAX series for clinical instrumental functional diagnostics. The writing is done close to the joints and on the exact individual hinge axis. CADIAX provides all relevant jaw-related motion data for the diagnosis and functional therapy of the occlusion.

Main features:

  • Bilateral, simultaneous, time-based 3D registration of condylar movement
  • Individual hinge axis and facial plane
  • Localization of the kinematic axis with real-time display control
  • Flexible registration (denomination, quantity, duration)
  • Electronic condylar-position-measurement (CPM) directly on the patient
  • Integrated model transfer into the articulator (individually)
  • Automatic calculation of value settings for many other articulator systems (sagittal and transversal condylar inclination, mechanic and virtual)
  • Direct transfer of the actual patient movement in the virtual articulator, movement simulation without compromises or mechanic limitations
  • Multiple evaluation possibilities of the data with the CADIAX software
  • Various graphic types of presentation for didactic purposes but also for patient information



CADIAX® 4  measures translation and rotation. The high-precision electronics (16 bit ADC) work with an internal measurement resolution of 0.001mm. The system records practically any number of movements, up to a duration of 18 seconds per registration.

Product packages:

CADIAX® 4
Electronic box including:
2 flags (large), 2 double-styli, foot switch, cables,
carrying case, USB cable, user manual
(prerequisite: condylograph / condylograph comfort, GDSW Version AM)

CADIAX® 4
Electronic box including:
2 flags (large), 2 double-styli, foot switch, cables,
carrying case, USB cable, user manual
Including: GDSW Version “AM”
Not included:  condylograph / condylograph comfort

Condylograph
Set consisting of:
cranial and mandible bow; 3D-joint support and bite fork partial;
Upper jaw transfer stand and supplementary parts for-transfer to Reference articulator

Condylograph comfort
Set consisting of:
cranial and mandible bow; 3D-joint support and bite fork partial; incl. orbital pointer P + T
Upper jaw transfer stand and supplementary parts for transfer to Reference articulator

CADIAX compact

Basic device within the CADIAX® product family, developed to record mandibular movement and calculate patient-individual articulator settings. Following the concept of anatomic face-bows, CADIAX® Compact uses an anatomically located hinge-axis as the starting point of the recordings. The application on the patient is easy to use, ergonomic and time efficient. Values for articulator settings can be evaluated within a few minutes.

Main features:

  • bilateral, synchronized and time-based data acquisition of the translational movements of the mandibular hinge-axis
  • Anatomical determined hinge-axis and facial plane
  • Measurement of condyle positions during the recording process
  • Model transfer into the articulator (anatomic)
  • Automatic calculation for many commercially available articulator brands (sagittal and transversal condyle inclination)
  • Direct data transfer into virtual articulator / virtual patient software
  • Various evaluation tools in the CADIAX® analysis software
